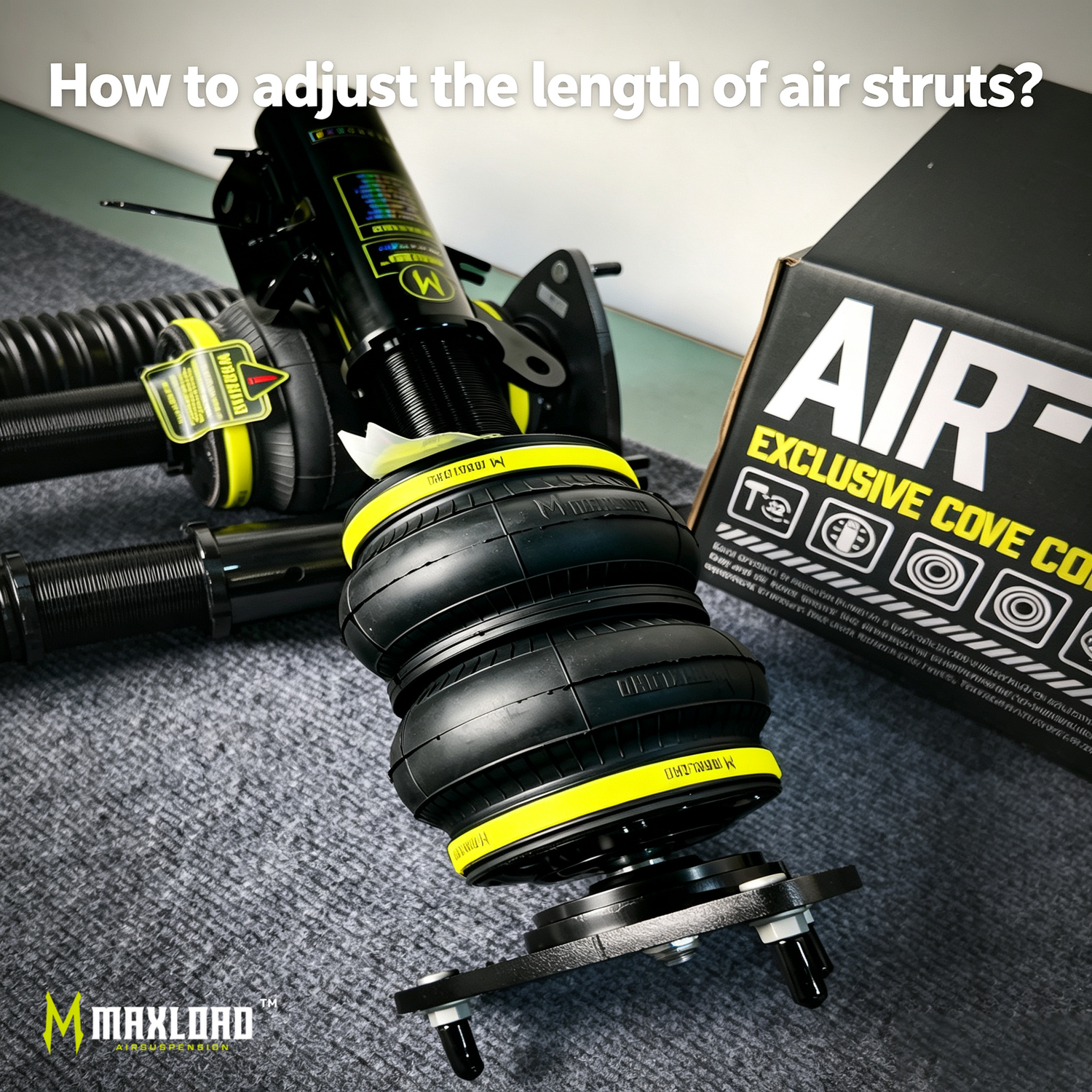

If you’re chasing an ultra-flush low stance or a balanced daily comfortable ride with air suspension, correct air strut length adjustment is critical. Improper strut sizing leads to overly high airbag pressure, reduced air bag lifespan, and limited maximum lift height. Below we break down two simple step-by-step guides for ultra-low setup and regular ride height tuning.
Part 1: Adjust Strut Length For Your Ideal Ultra-Low Stance
The target airbag pressure at your lowest position should stay between 20–30 PSI, which protects airbags from damage compared to running near 0 PSI, while unlocking maximum lifting range.
- Thread front and rear dampers all the way into their lower mounting brackets.
- Mount the full strut assembly onto your vehicle.
- Drop the car to your desired ultra-low stance, then record the air pressure inside front and rear airbags.
- If the reading exceeds 20–30 PSI: Remove the lower brackets from the car, rotate them counterclockwise to extend strut length. Match the extra length to the PSI gap between your current reading and the 20–30 PSI target range.
- Refit the lower brackets, lower the car back to your target low stance, and check airbag pressure again.
- Repeat steps 4 & 5 until your lowest stance holds steady at 20–30 PSI, then save this as your lowest memory preset.
Once finished, you get your perfect flush low look with safe airbag pressure and full maximum lift capability.
Part 2: Tune Strut Length For Smooth Daily Ride Height
This method prioritizes suspension comfort first, then fine-tunes fender-to-tire clearance to your target height.
- Inflate/deflate the air struts to a pressure that delivers your preferred spring elasticity and ride comfort — ignore the vehicle height for this step.
- Measure the gap between tire and fender, calculate the offset from your ideal clearance. Example: Current gap = 3cm, target gap = 5cm → total difference = 2cm.
- Remove the air strut from the vehicle.
- Measure the fixed distance between the airbag lock ring and lower mount (this airbag-side lock ring must never be loosened). Add your height difference value to this measurement to get your new target length. Example: Original 4cm + 2cm offset = new target 6cm.
- Loosen the lock ring near the lower mount, spin the lower bracket to adjust the distance to your target measurement, then fully retighten the lock ring.
- Reinstall the strut and recheck tire-to-fender clearance. Suspension geometry creates minor conversion errors between strut length and wheel gap, so repeat fine-tuning a few times until you hit your exact desired ride height.
Short Closing Tip
Taking time to calibrate your air strut length upfront extends airbag service life, eliminates harsh bottom-outs, and lets you switch seamlessly between show-ready low stance and smooth daily driving heights via your air management controller.
